输送式地毯清洗机
- 详细介绍

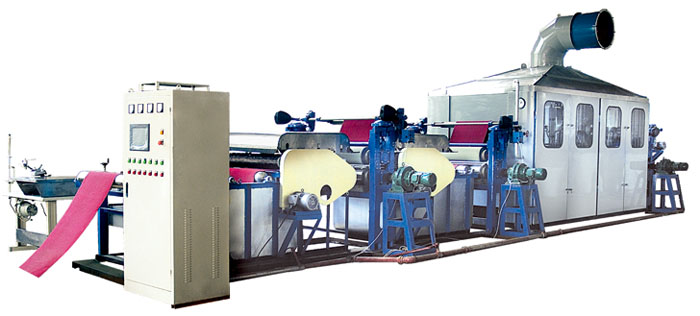

LDSQ100-A 系列输送式地毯清洗机
LDSQ100-A系列输送式地毯清洗机集清洗、脱水、烘燥功能于—体，是我公司科研人员根据铁路、航空用地毯的清洗要求，研制成功的一种地毯清洗机械。本产品采用PLC人机界面产品触摸屏，并配用机械拼缝对接技术。
该机具有结构台理、操作方便、洗涤效果好，工作效率高，成本低等优点。解决了过去长期手工劳动强度大，清洗不干净的难题，是铁道、航空、宾馆过道地毯等行业的洗涤机械。
LDSQ100-A Transport type carpet cleans machine
LDSQlOO-A Transport type carpet cleans machine have washing , dewatering , drying function. It was researched and designed according to the requested of railway and airline use. it fillsup the new machine of domestic gap , Authenticated and expansion use by province class section and railway department. This machine has the most advanced PLC with man-machine interface touch hold , also with sew connect technical by machine.
This machine has a hot virtuesas reasonable structure , east operacon safely , effective washing , high efficiercy and saving energy , to solve the difficulty problems such as longterm greatest strength labor by hand. Hard Io clean.
It is the best washing machine for carpet used in gungway of railway , airline , hotel and so on.
输送式地毯清洗机系列主要技术参数：
Main Technical Parameter
LDSQ100-A系列输送式地毯清洗机集清洗、脱水、烘燥功能于—体，是我公司科研人员根据铁路、航空用地毯的清洗要求，研制成功的一种地毯清洗机械。本产品采用PLC人机界面产品触摸屏，并配用机械拼缝对接技术。
该机具有结构台理、操作方便、洗涤效果好，工作效率高，成本低等优点。解决了过去长期手工劳动强度大，清洗不干净的难题，是铁道、航空、宾馆过道地毯等行业的洗涤机械。
LDSQ100-A Transport type carpet cleans machine
LDSQlOO-A Transport type carpet cleans machine have washing , dewatering , drying function. It was researched and designed according to the requested of railway and airline use. it fillsup the new machine of domestic gap , Authenticated and expansion use by province class section and railway department. This machine has the most advanced PLC with man-machine interface touch hold , also with sew connect technical by machine.
This machine has a hot virtuesas reasonable structure , east operacon safely , effective washing , high efficiercy and saving energy , to solve the difficulty problems such as longterm greatest strength labor by hand. Hard Io clean.
It is the best washing machine for carpet used in gungway of railway , airline , hotel and so on.
输送式地毯清洗机系列主要技术参数：
Main Technical Parameter
| 安装后外形尺寸Overall | 长×宽×高=10.2m×3.5m×3.7m |
| 装机总功率Totol power | 17.09KW |
| 蒸汽滚筒最大气Max.pressure for steam drum | 0.6Mpa |
| 蒸汽滚筒直径Dimension of steam drum | Φ900mm |
| 轧辊允许最大气压 Max.atmospheric pressure of roll | 0.4Mpa |
| 毛刷线速度 Brush linear speed | 34-204m/min（常用100-200m/min） |
| 毛刷辊转速Speed of rotal brushroll | 60-360r/min |
| 轧辊转速Speed of rotative by poel | 0.8-2.6r/min |
| 地毯运行速度Speed operation of by carpet | 0.6-1.8r/min |
| 地毯幅宽Width of capet | <1m |
| 地毯厚度Thickness of capet | 5-10mm |
| 烘筒表面最高温度The highest temperature of drying drum | 158℃ |
| 机器总重量Totol weight | 约12T |
| 用水量Water consumption | 约每小时2.5T |
| 用电量Electronic consumption | 约每小时17.9度 |
| 用蒸汽量Steam consumption | 约每小时250-300kg |
| 洗衣粉用量Soap powder consumption | 约每米1.5g |
